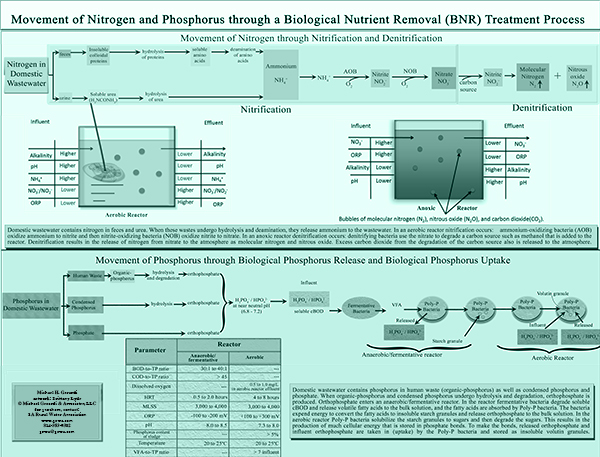

Poster 36×24, Movement of Nitrogen and Phosphorus through a Biological Nutrient Removal (BNR) Treatment Process

In highly illustrated format, the poster reveals the movement of nitrogen through nitrification and denitrification. The poster displays the influent and effluent characteristics of a waste stream through an aeration tank as well as the influent and effluent characteristics of a waste stream through a denitrification tank. The forms of phosphorus and the presence of orthophosphate biological phosphorus release and biological phosphorus uptake as well as reactor parameters for biological phosphorus removal are given.
